Introduction
Manufacturers today are constantly trying to keep up with cut-throat competition, which forces them to come up with products in less time, put on lesser expenses and meet stricter quality controls. Unstandardized prototyping is one of the main reasons why design errors and validation failures are so common.
Old-fashioned ways which depend on tribal knowledge are the causes of inconsistency rework time wastage, and increase of costs. In this paper, we investigate the world-wide standard framework for rapid prototyping and learn how standards such as ISO/ASTM serve as the basis of guidance. They play a significant role in building disclosure procedures that are repeatable and verifiable. Five main questions help us understand the essential benefit of this standardization.
How Do International Standards Define the Quality Benchmark for Modern Rapid Prototyping?
The ISO/ASTM 52900:2021 standard provides a global reference point for defining and categorizing additive manufacturing processes through a single set of terms and definitions. Communication silos will be broken by the combined terminology for seven main processes categories thus means that different “rapid prototyping” outputs can be fairly compared. Moving on to quality, this directly takes a general requirement and breaks it down into specific controls in the manufacturing process.
It lays out the permissible deviations for dimensions of a component, tells how to measure the surface roughness (Ra), and provides a unified way to make test coupons for mechanical properties like tensile strength. By using these standards, the look of the prototypes will be consistent and their functions will be somewhat predictable, thus providing a dependable basis for design verification and getting new designs.
What Special Regulations Must Silicone Rapid Prototyping Follow in Medical Device Development?

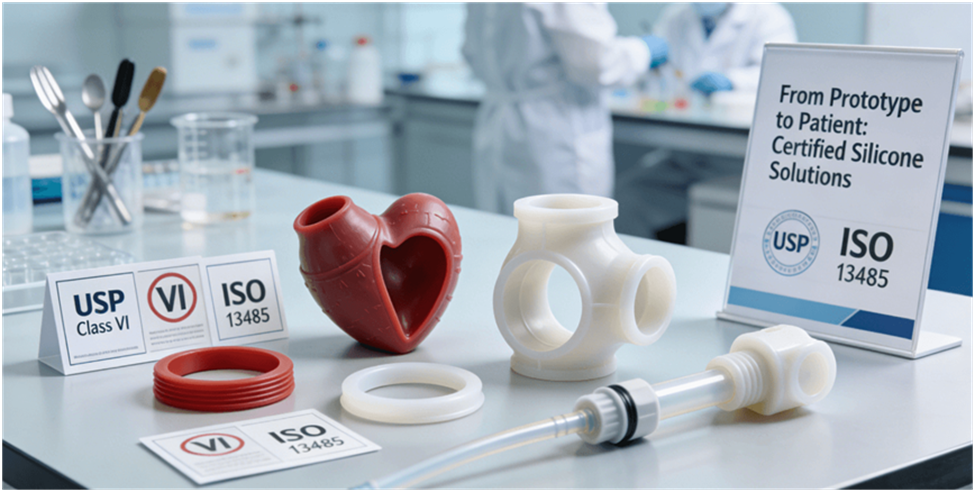

In the medical device industry, Silicone Rapid Prototyping must adhere to much more rigid regulations than those of general prototyping.
The Foundation: Material Biocompatibility and QMS
Materials used in patient-touching silicone prototype applications need biocompatibility certification (e.g., USP Class VI or ISO 10993). At the same time, the process itself must follow the ISO 13485Medical Devices Quality Management System. It focuses on risk management and traceability, including records from receipt of material through shipping of custom silicone prototypes, ensuring suitability for preclinical studies.
Performance Requirements and Manufacturing Technology Selection
Medical-grade silicone prototypes have a series of performance requirements:
l Sterilization Tolerance
It is vital that medical-grade prototypes can withstand sterilization procedures such as Ethylene Oxide or Gamma Irradiation without losing the original property of the material or releasing harmful substances.
l Durability and Dimensional Stability
Medical-grade prototypes should be able to withstand the challenge of exposure in simulated body fluids.The main technology types are vacuum casting and rapid tooling. Vacuum casting is more appropriate for small quantities of intricate designs (1-5 pieces). Rapid tooling is more appropriate for phases that demand dozens of prototypes for repeated testing. Choosing professionalsilicone prototype manufacturers involves assessing their entire medical certification system and clean production environment.
Integrating the Process from Concept to Verification
A compliant process involves material certification, quality system control, and technical processes. From concept models to functional test prototypes and then to those intended for trial or submission, each stage has to be well-defined in terms of input requirements, output requirements, and verification requirements to ensure data is available for product registration and launch.
How Does Rapid Tooling Technology Balance Prototyping Speed with Cost-Effectiveness?
rapid tooling’s core value is balancing speed, cost, and part quality, especially for rapid prototyping silicone rubber parts.
Selection involves evaluating tool life, precision, and cost. Aluminum tools have a life of thousands of cycles, a short lead time of 1-2 weeks, moderate cost, and excellent dimensional stability and surface finish with Ra ~0.8 μm. They are suitable for 50-500 parts. Soft steel tools have a life of tens of thousands of cycles, are suitable for hundreds to thousands of texture-critical parts involving abrasive silicones due to their strength, and have a longer lead time. 3D printed tools have the shortest lead time but a life of only dozens of cycles. They are only suitable for verification.
The technology is also beneficial for parts quality. Aluminum and steel tools provide excellent details and low roughness values but require more stringent draft angles. The most important calculation is that of return on investment. For 5-30 parts, 3D printing or direct casting is more cost-effective. However, for more than 50 parts, the cost advantage of rapid tooling is substantial, making it an ideal solution for balancing efficiency and cost-effectiveness.
Why Has the Automotive Industry Incorporated Rapid Prototyping into Mandatory Verification Processes?
The automotive industry’s reliance on rapid prototyping within mandatory verification activities is a result of their need for safety, reliability, and compliance. The IATF 16949 standard is a quality management standard that requires automotive manufacturers to verify their designs. The National Highway Traffic Safety Administration (NHTSA) is a government agency that requires automotive manufacturers to test their products physically.
Functional custom silicone parts prototypes are a necessity. The engine bay seals are necessary for validating resistance to engine oils. The waterproof membrane for automotive doors is necessary for validating fit and function. The various parts inside an automotive cabin are necessary for validating feel, functionality, and VOC emissions. These are the indispensable physical link between a computer-aided design (CAD) file and a manufactured product.
As a result, it is necessary to perform a series of simulated validation tests. These are necessary for validating environmental tests, mechanical tests, and chemical exposure tests. The environmental tests are necessary for validating temperature cycling, humidity, and UV exposure. The mechanical tests are necessary for validating vibration, shock, and fatigue. The chemical exposure tests are necessary for validating fuel, oil, and cleaning solution compatibility.
How Can Enterprises Establish a Prototyping Quality System Compliant with ISO 9001 and AS9100D?
In the context of the Industrial Technology Manufacturing Industry, the quality system that meets the standards is the basic requirement for the reliability of the prototype. This is the entire workflow in the form of a systematic approach.
Core Process Framework Based on ISO 9001:2015
The ISO 9001:2015 framework is implemented in the context of prototyping as an interconnected cycle of four core processes. This begins with Design Review, which carries out DFM analysis on the client’s design. The second core process is Process Control, which involves the meticulous control of parameters of the entire workflow. The third core process is Inspection and Measurement, which employs state-of-the-art equipment such as CMMs and laser scanners. Finally, the cycle is completed by the core process of Continuous Improvement. This entire systematic approach is the key to the precision of the rapid CNC prototyping that is achieved.
Implementation Tools: Traceability, Documentation, and Statistical Control
For implementation, specific tools are necessary.
l Enhanced Traceability per AS9100D
AS9100D, a standard in the aerospace industry, incorporates increased constraints. It requires full two-way traceability. All components material, machine, operator, and finally the prototype—must be related through clear records. If a problem arises, it must be noted and solved.
l Controlled Documentation at Key Points
Evidence of control can be found at specific points: reviewing a 3D model (version history), material inspection (recording batches), machining processes (recording equipment calibration), and finally inspecting the prototype (document and signature records). Each process requires controlled documents.
For a small-batch prototype, Statistical Process Control (SPC) guarantees lot-to-lot consistency. By observing the trends of a key dimension of the part, adjustments can be made to the process before a problem arises, ensuring all prototypes meet high standards of consistency and reliability.
Conclusion
Standardized rapid prototyping represents a system of quality management. From the ISO/ASTM standard to industry-specific quality system certification, the entire system helps eliminate risk in development, speed time-to-market, and enhance the reliability of the product. International standards serve as a measurable standard. Professional manufacturers’ quality system certification guarantees the implementation of the standard.
Planning your next development project? Why not introduce standardized processes from the start? Consult the resource centers of professional manufacturers for access to technical papers. Alternatively, request a quote from a certified manufacturer that meets international standard requirements. For instance, partners like JS Precision are certified with ISO 9001:2015 and IATF 16949. These are a testament to the reliability and quality of the products and services they offer.
Author Biography
The article was written by a manufacturing technology analyst with expertise in industrial process optimization and the application of international standards. With over a decade of experience in the field, the author has worked with multinational corporations on the development of prototypes.
FAQs
Q1: What is the exact impact of the ISO/ASTM standards on the manufacturing of rapid prototyping?
A: It offers a single complete scheme that not only explains the terminology used but also organizes the processes and defines the quality requirements necessary so that prototypes from different manufacturers can be compared in a consistent manner; Besides, it provides clear measures of the accuracy and performance used.
Q2: What special certifications are necessary for medical-grade silicone prototypes?
A: Besides the ISO 13485 certification, other certifications necessary include the biocompatibility of the material using the USP Class VI test, sterilization validation, and chemical compatibility testing necessary to verify the suitability of medical-grade silicone prototypes intended for preclinical studies.
Q3: What are the key differences between rapid tooling and traditional steel molds?
A: Rapid tooling made of aluminum or soft steel has the advantages of a short lead time (1-3 weeks) and lower cost, it is perfect for 50-500 pieces. Traditional steel molds have a long life and very high precision but take 8-12 weeks in production, they are suitable for very large manufacturing volumes.
Q4: What test items are commonly covered in automotive prototype validation?
A: Prototype validation tests include a variety of environmental stress tests such as temperature cycling, humidity, and UV exposure; mechanical tests like vibration, shock, and fatigue; chemical exposure to different chemicals including various fuels, oils, and cleaners; as well as functional verification which encompasses waterproofing tests, sealing, and assembly performance.
Q5: What are the methods to assess the reliability of a prototype manufacturing supplier’s quality system?
A: One main point is to verify if the supplier has the right certifications at present such as ISO 9001, IATF 16949 or AS9100D. In addition, the supplier’s internal records should be thoroughly checked which include process control documents, measurement equipment calibration records as well as customer case follow-up records.
